2.4 GHz 無線 Audio Video Enclosure - WAVE-2001
 |

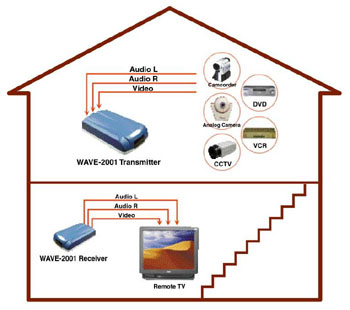

WAVE-2001是你無限影音傳輸接收器的最佳選擇.WAVE-2001的傳輸裝置可連接DVD,VCR,CCTV攝影機,或類比攝影機將其聲音及影像透過WAVE-2001的接收裝置,傳送至遠端的電視,提供使用者觀看.例如你有一台DVD的裝置,而家中在客廳及房間都有電視,如同下面的圖示,你可在其中的一個房間將DVD或(VCR.CCTV.攝影機或類比攝影機)連接到WAVE-2001的傳輸設置上,而將另一房間的電視連接上WAVE-2001的接收裝置,此時你可以在此房間的電視上觀賞DVD而無須購買另外一台DVD裝置
 |
Features:
- 2.4 GHz wireless transmitter and receiver with 4 selectable channels (Tact Switch)
- Transmit crisp Audio/Video signal with radio frequency
- Compact size with modern design
- All antennas are embedded into housing
- Remotely control the Audio/Video source with IR extender
- Compatible with camcorder or analog camera application
- Low power consumption
- NTSC/PAL video format available
規格:
| Model |
WAVE-2001 (Transmitter)
|
| Frequency | 2400 MHz ~ 2483 MHz |
| Transmitter Power |
13 dBm (typical) |
| RF Channel | 4 (2414 MHz, 2432 MHz, 2450 MHz, 2468 MHz) |
| Video Standard | NTSC, PAL |
| Frequency Stability | + 100 KHz (typical) |
| Video Input Level | 1 Vp-p (typical) |
| Audio Input Level | 1 Vrms (typical) |
| Supply Voltage | 9 V (typical) |
| Power Consumption | 0.5 W (typical) |
| Antenna | Invert F Antenna |
| Size | 4 cm(h) x 9.2 cm(w) x 14.5 cm(d) |
| Operating Temperature | 0 C to 60 C degrees |
規格:
| Model |
WAVE-2001 (Receiver)
|
| Frequency | 2400 MHz ~ 2483 MHz |
| Receiver Sensitivity | -85 dBm (minimum) |
| RF Channel | 4 (2414 MHz, 2432 MHz, 2450 MHz, 2468 MHz) |
| RF Channel Selection | Manually |
| Video Standard | NTSC, PAL |
| Audio Output | Crisp audio with radio frequency |
| L.O.Stability | + 100 KHz (typical) |
| Video Output Level | 1 Vp-p (typical) |
| Audio Output Level | 1 Vrms (typical) |
| Supply Voltage | 9 V |
| Power Consumption | 1 W (typical) |
| Antenna | Invert F Antenna |
| Size | 4 cm(h) x 9.2 cm(w) x 14.5 cm(d) |
| Operating Temperature | 0 C to 60 C degrees |
*
所有規格都會在無預先告知下而有所更改
