2.4 GHz Wireless Audio Video
Enclosure System - SG-WAVE
|
|
|
|
Model #: SG-WAVE
|
Model #: CA-2000RF
|

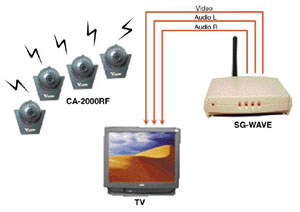

The
SG-WAVE is your perfect choice of wireless surveillance system.
It is able to receive up to four 2.4 GHz wireless cameras, CA-2000RF,
and monitor each camera on a monitor. With the SG-WAVE, you do
not need to worry about fixing the wires to the system, rather
all you need to do is to plug the video and audio
cables from your TV or monitor to the SG-WAVE, and you are able
to monitor both video and audio on your monitor..
Suggested Applications:
- House and Office: Users at anywhere
can keep local situation under control through telephonic lines
or the Internet to remotely monitor their houses, factories,
or warehouses at anytime. Users can also transmit the real-time
video to someplace automatically, and make a copy for storage.
- SOHO: Sellers can make a survey of all
customer behavior over the Internet, and meet basic requirements
of security.
- Parking lot: Managers can get an effective
control of situation of all cars reserved.
- Warehouse: Manufacturers can view all
processes of production, and keep materials in warehouse under
effective control through telephonic lines or the Internet
Specifications:
| Model |
SG-WAVE (Receiver)
|
| Frequency |
2400 MHz ~ 2483 MHz |
| Receiver Sensitivity |
-85 dBm (minimum)
|
| RF Channel |
4 (2414 MHz, 2432 MHz, 2450 MHz,
2468 MHz) |
| RF Channel Selection |
Manually |
| Video Standard |
NTSC, PAL |
| Audio Output |
Crisp audio with radio frequency |
| L.O. Stability |
+100 KHz (typical) |
| Video Output Level |
1 Vp-p (typical) |
| Audio Output Level |
1 Vrms (typical) |
| Supply Voltage |
9V |
| Power Consumption |
1 W (typical) |
| Antenna |
Invert F Antenna |
Specifications:
| Model |
CA-2000RF (Transmitter)
|
| Image Pick-Up Device |
1/3" CMOS color sensor |
| Resolution |
NTSC: 250K pixels
PAL: 290K pixels |
| Operating Frequency |
2.4 GHz |
| RF Channel |
4 (2414 MHz, 2432 MHz, 2450 MHz,
2468 MHz) |
| RF Range |
Up to 300 feet (Line of sight) |
| Audio Input |
Microphone built-in |
| Iris Control |
Electronic |
| Illumination Range |
10 Lux minimum |
| S/N Ratio |
42 dB |
| F No. |
2.0 |
| Focus Area |
20 mm - infinity |
| Angel of view |
50 degrees |
| Power |
DC +7.5V |
| Operating Temperature |
0 C to 50 C degrees (Non-Condensing) |
| Storage Temperature |
-10C to 60 C degrees (Non-Condensing) |
| Size |
7.2 cm(h) x 5.6 cm(w) x 7.2 cm(d) |
*
All specifications are subject to change without notice
