Model

S-988

PC Interface

USB2.0

Video Standard

NTSC, PAL, SECAM(auto detection)

Video Inputs

One composite(analog) input with RCA connector or S-Video connector

Video Through Function

------------

Audio Inputs

Two RCA connectors (Left / Right)

Capture Rate

30fps at VGA(640x480)

Frame Size

QCIF(160x120)to VGA(640x480)

Compression

Zero Compression

Software Interface

WDM driver

File Formats Supported

BMP,AVI,PCX,TIF,JPG,TAG

Data Format

YUV 4-2-2, YUV 4-2-0, RGB

O/S Support

Windows XP

Operating Voltage

5V, Powered by the USB port

Dimension (W x D x H)

10x4x2 cm

Windows SDK

Yes

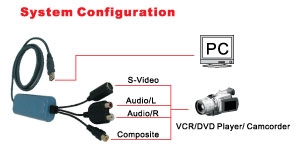

Supports camcorders, TV, VCR, video game player, analog cameras, etc.
