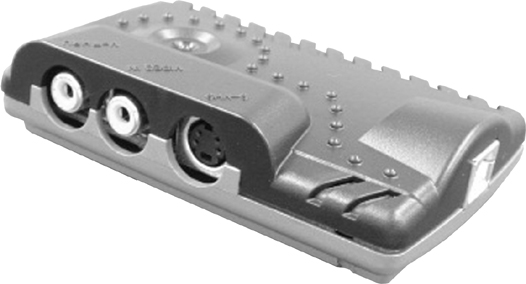

USB 2.0 Video Grabber - S-928
 |
The USB 2.0 Video Grabber, S-928, is the ultimate USB video connector for camcorders featuring built-in video port. Its RCA and S-Video ports allow you to easily import video from such devices as TV, VCR, camcorders, or any other analog devices. Best of all, its USB 2.0 high speed interface makes data transportation as fast as 30 frames per second at VGA(720 x 480) with zero compression.

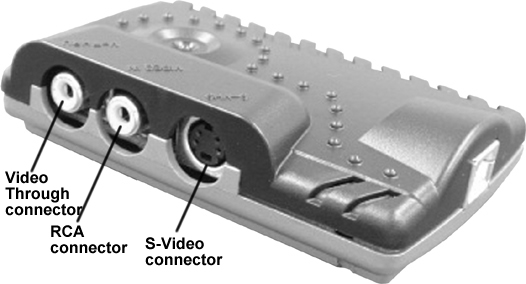

The S-928 also has a video through connector, see the diagram below, that allows you to output what you are capturing onto your TV or VCR. That is, you are able to remotely view or record from your TV or VCR the video you are importing through your S-928.
 |
Specifications:
| Model | S-928 |
|
| PC Interface | USB 2.0 | |
| Supports camcorders, TV, VCR, video game player, analog cameras, etc. | ||
| Video Standard | NTSC, PAL, SECAM | |
| Signal Input | Composite (analog) or S-Video | |
| Video Through Function | Yes | |
| Capture Rate | PAL: 30fps at 720x576 | PAL: 30 fps at 352x288 |
| NTSC: 30fps at 720x480 | NTSC: 30fps at 320x240 | |
| Frame Size | CIF (320x240) to VGA (720x480) | |
| Hardware Compression | No Image Compression | |
| Software Interface | Windows WDM driver, TWAIN interface | |
| File Formats Supported | BMP, AVI, PCX, TIF, JPG, TAG | |
| Data Format | YUV 4-2-2, YUV 4-2-0, RGB | |
| O/S Support | Windows 2000/XP | |
| Power | 5V, provided by USB port | |
| Operating Temperature | 0 C to 50 C degrees (Non-Condensing) | |
| Storage Temperature | -10 C to 60 C degrees (Non-Condensing) | |
| Dimension | 95 x 63 x 24 mm | |
Minimum System Requirements:
- A computer system equipped with Intel Pentium IV 1.5 GHz CPU or above
- 1 Free USB 2.0 Port
- 128 MB of RAM
- Operating System: Microsoft Windows
2000 & XP.
*
All specifications are subject to change without notice
* All
brand names and tradmarks are the property
of their respective owners
