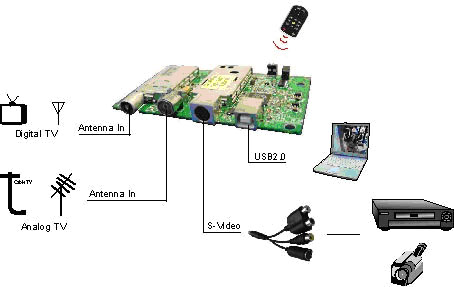

HTV-6008 is a highly integrated, USB2.0 compliant Hybrid TV tuner box with A/V capturing capability. It supports terrestrial digital TV (DVB-T) and analog TV standard as well. The main controller integrates two 16-bit audio ADCs, two 10-bit high-quality video decoders, which insure to give you the best video and audio quality. Connecting with your camcorder or VHS, you can import video in to a PC, editing and save video in hard disk or even burn in a CD or DVD.

Traditional TV

• Built-in TV tuner : automatic channel scan across all available cable channels

• Full screen or smaller view TV watching on desktop and notebook

• Receivers 151 cable channels

• NTSC/PAL/SECAM TV standard

DVB-T

• Antenna 750hm

• Digital TV Reception (DVB-T 6MHz/7MHz/8MHz)

• VHF band III K5-K12 (174MHz-230MHz)

• UHF band IV/V K21-K69 (470MHz-862MHz)

• CONFDM demodulation (QAM16/QAM64)

A/V Grabber

• Complied with USB2.0 high speed transfer

• Video input: Composite and S-Video jack

• Audio input: 2RCA jacks

• TV standard support: NTSC, PAL, SECAM

• Frame rate: up to 60fps, no video output

• High quality de-interlaced video compression

• Motion image format: 176x144, 320x240, 352x288, 640x480, 704x480, 704x576, 720x480, 720x576

• Audio output : USB pipe

• Software Interface: Microsoft BDA driver support

• Low CPU loading – SSE/3D Now, enhanced multimedia instruction

• SDK available for developer

• Bus-powered : +5vdc through USB port, 450Ma max.
